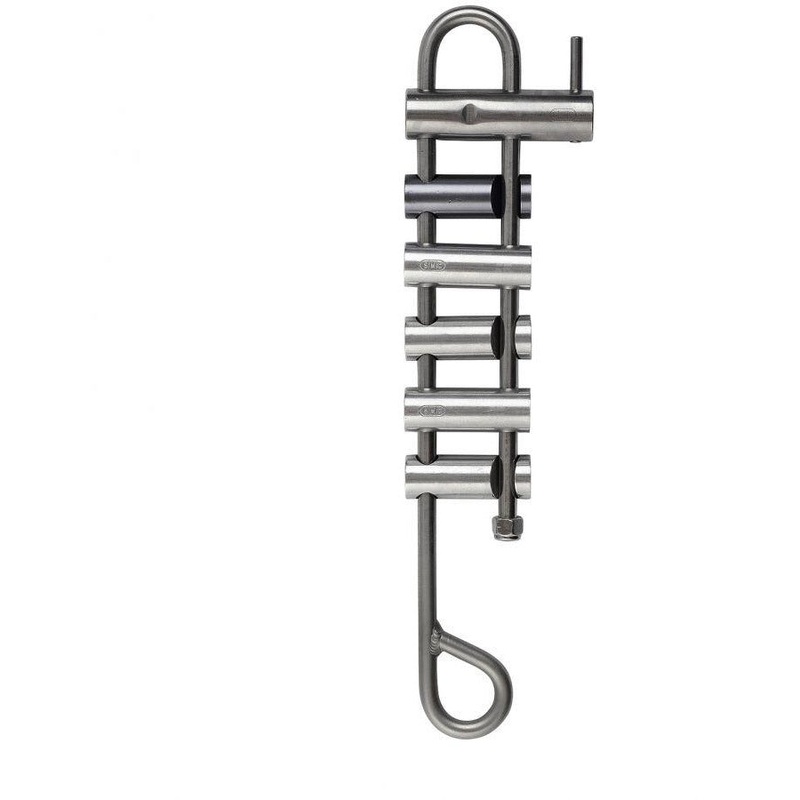

SMC Rappel Rack Assembly

SMC Rappel Rack Assembly

J Frame (or Open Racks) differ from U racks because they allow the user to adjust friction, while under load, by adding or removing bars. This unique feature results in greater control of the rate of descent. SMC J racks formed out of stainless-steel bar stock, and masterfully welded for exceptional strength and durability.

These racks are longer and equipped with 6 bars which allow for a broad variation in the amount of friction created. The top bar, which receives the most wear, is larger and constructed from stainless steel and is equipped with a Tie-Off Bar to facilitate tie offs or quickly add extra friction. The remaining 5 bars are machined aluminum.

Features and Benefits:

• Adjust friction by adding or removing bars while under load
• Brake bars are replaceable
• May be used as either a rappel or lowering device
• Does not twist rope, as can occur when using a Figure 8 type descender
• Meticulously welded eye
• May be used with single or double ropes of varying diameters
• Provides wide range of friction and control under varying weights and applications.
• Equipped with one stainless steel Tie-Off Bar and 5 Aluminum bars for extra friction and control
• Made in the USA

Specifications

• Model #: NFPA14001
• Material: Stainless Steel Frame & Tie-Off Bar, 5 Aluminum Brake Bars
• Finish: Polished Anodized
• Dimensions: 14.4″ Long
• Weight:29.2 oz (828g)
• NFPA1983 Certified
